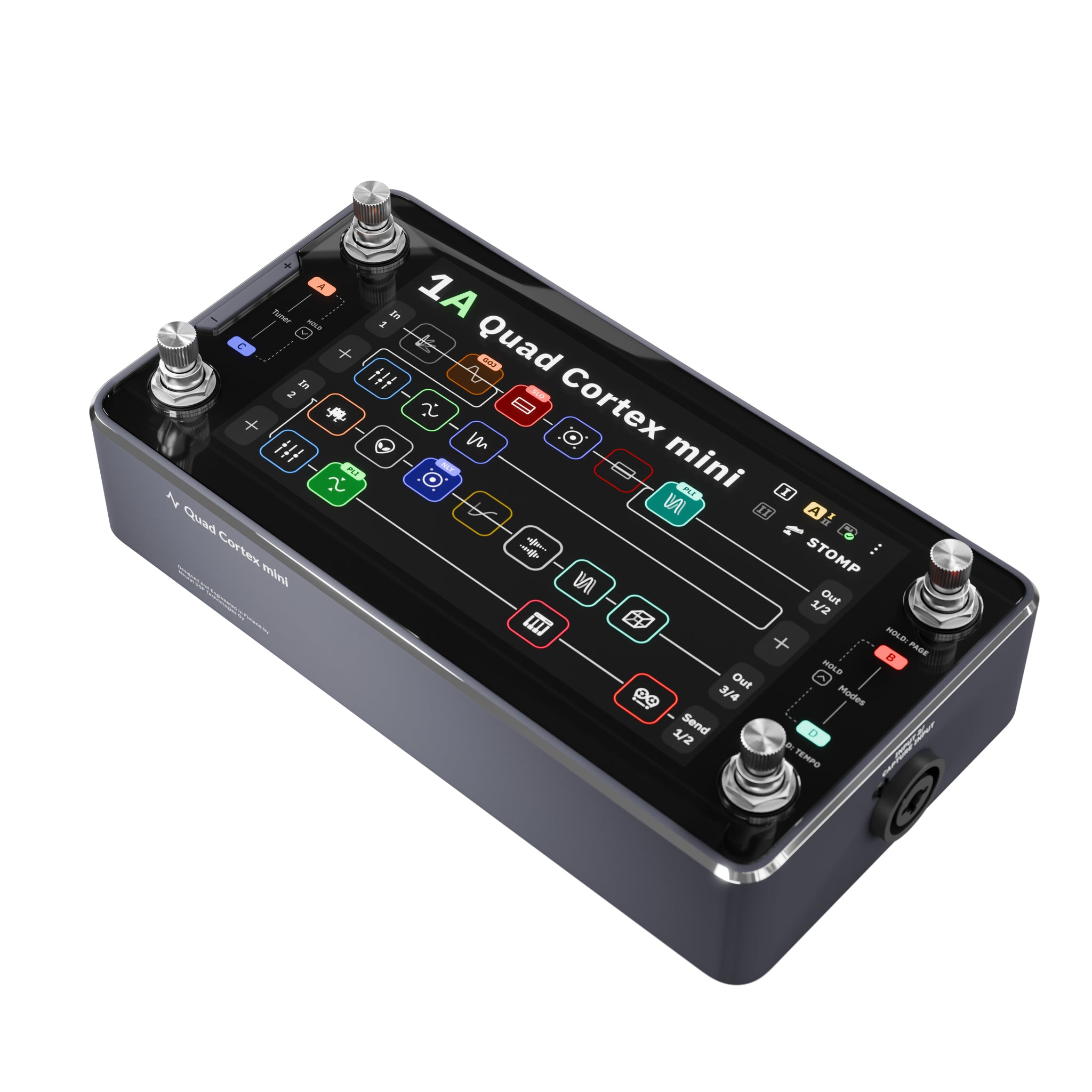

Neural DSP Quad Cortex Mini Modelling and Effects Processor
Quad Cortex mini delivers the full Quad Cortex experience in the most compact, usable
format we’ve ever built, with no compromises.
It brings the same processing power, audio quality, Neural Capture technology, and 7”
touchscreen experience as Quad Cortex, while taking up significantly less space. Built
around an unprecedented level of processing power for its size and price, Quad Cortex
mini delivers world-class sound that’s easy to dial in, with a huge range of tones and
devices ready to explore.
Quad Cortex mini runs the same CorOS software and integrates fully with the Quad
Cortex ecosystem. Presets, full backups, and complete workflows move seamlessly
between devices, so everything works exactly as expected with nothing to rebuild.
The result is a powerful and versatile platform that removes the traditional trade-off
between size and capability, delivering un-compromised sound and deep creative
flexibility in a more portable, rack-friendly, and desk-friendly form.
Key features:
● A complete guitar and bass processing rig in one compact unit
● Same processing power, audio quality, and Neural Capture technology as Quad
Cortex, with an unprecedented level of processing power for its size and price
● Ultra-compact and portable format, measuring 22.8 x 11.8 x 6.5 cm / 8.9” x 4.6” x
2.5” and weighing 1.5 kg / 3.3 lbs
o More than 50% smaller footprint, while retaining the full Quad Cortex
experience
● Preloaded with a vast library of virtual devices: 90+ amps, 100+ effects, 1000+
cabinet IRs, and 2000+ Neural Captures
● Neural Capture V1 and V2 support for creating and using ultra-accurate digital
replicas of amps, cabs, drive pedals, fuzzes, and compressors
● Free access to thousands of community-created Neural Captures via Cortex
Cloud

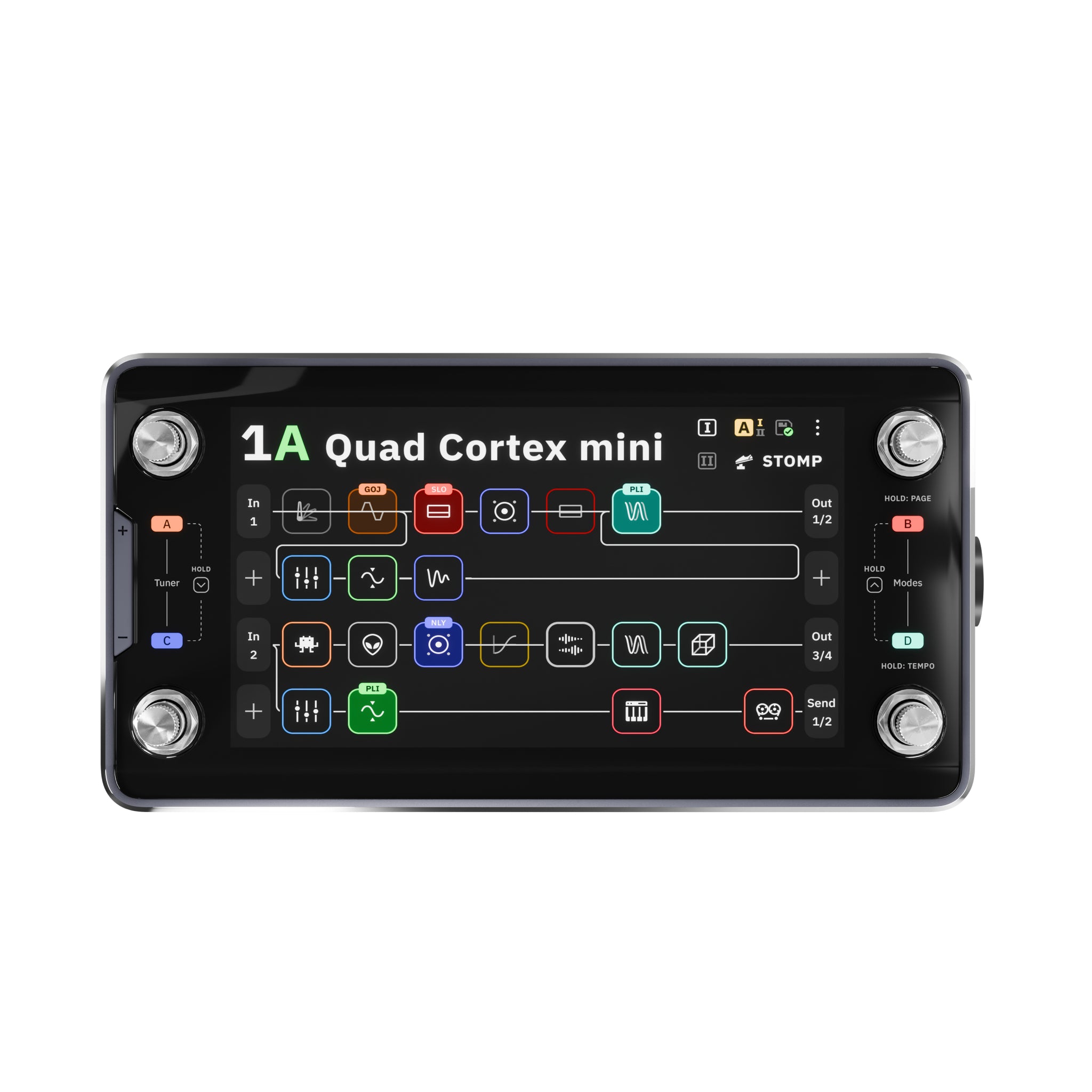

● Large 7” touchscreen display for fast editing and navigation
● Four stainless steel rotary encoders for Preset, Scene, and Stomp control, plus
intuitive hands-on parameter adjustment
● Focus system for fast, hands-on parameter control using the rotary foot switches
● Full Grid-based signal chain with touchscreen and foot switch control
● Up to four parallel signal paths with flexible routing and up to eight blocks per row
● Preset, Scene, Stomp, and Hybrid modes for flexible live and studio workflows
● Pages system for extended foot switch control without increasing the hardware
footprint
● Gig View for clear, high-contrast, performance-focused live operation
● Opposite Page Preview for instant visibility of Page assignments during live
performance
● Plugin compatibility with supported Neural DSP plugins
● Full integration with the Quad Cortex ecosystem, sharing the same CorOS
operating system
● Cortex Control desktop app for full device management, editing, backups, and
content organization
● Built-in Wi-Fi for wireless downloads, firmware updates, and cloud backups
● Doubles as a USB-C audio interface with 16 channels (8 inputs / 8 outputs)

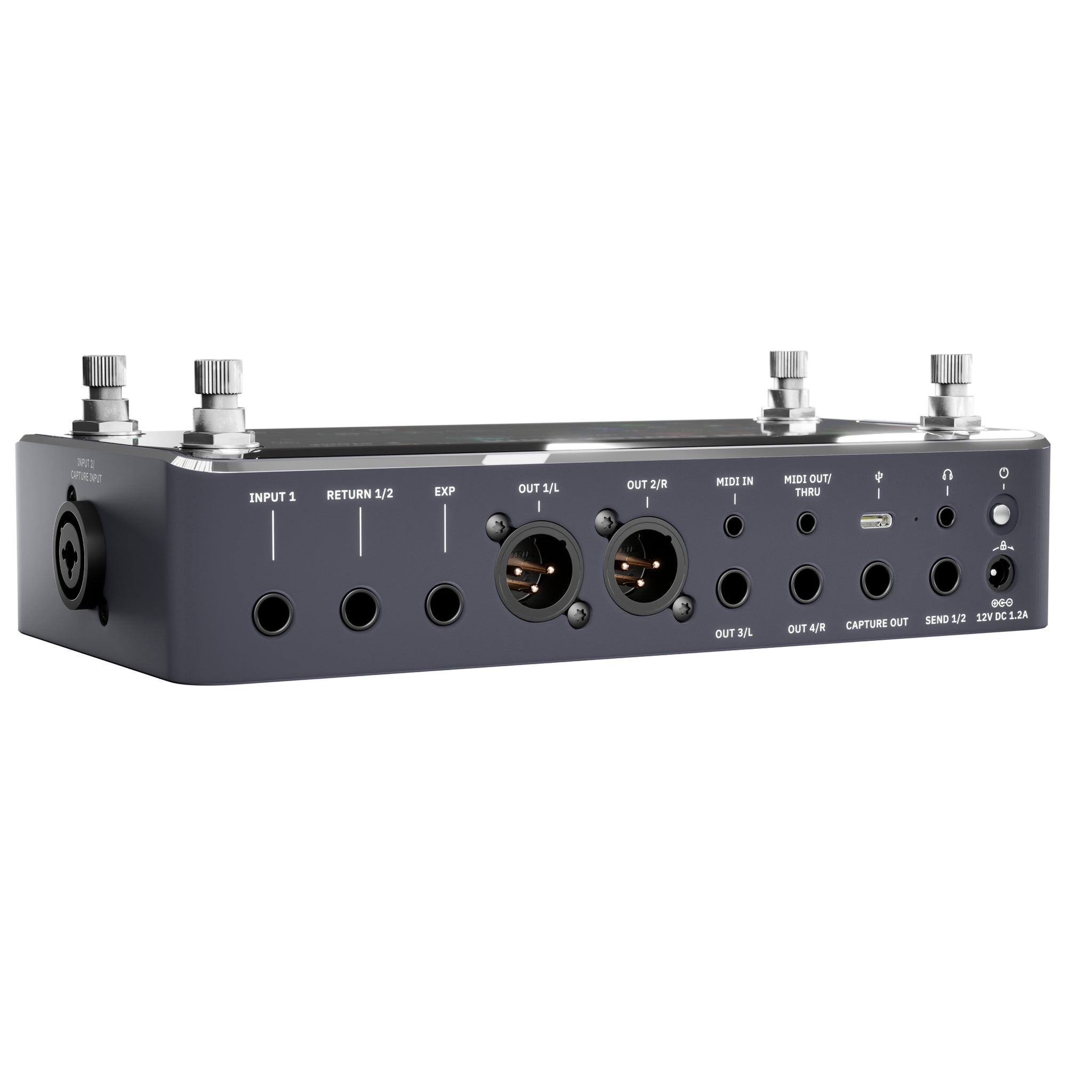

● Extensive and flexible I/O:
o Inputs: 1 x 1/4" TS (Input 1), 1 x combo XLR + 1/4" TS (Input 2), 1 x 1/4"
TRS (Return 1/2 via insert cable)
o Outputs: 2 x XLR (Outputs 1/2), 2 x 1/4" TS (Outputs 3/4), 1 x 1/4" TRS
(Send 1/2 via insert cable), 1 x 1/4" TRS (Capture Out), 1 x 1/8"
Headphone Out
o Control: 1 x 1/4" TRS-F (Expression Input 1), MIDI In and Thru/Out via 3.5
mm TRS-F (Type A), MIDI over USB-C
● Rugged anodized aluminum unibody with strengthened glass, designed for
touring, studio, and mobile use
● Locking power connector for secure, reliable operation in live environments
● Looper X with advanced looping features
● Built-in tuner and metronome
● Designed for live performance, studio recording, practice, and songwriting
● Launches alongside CorOS 4.0.0 with new devices and workflow enhancements
What’s in the box
● Quad Cortex mini
● 12 V DC power supply with locking barrel connector
● Non-locking barrel adapter for use with compatible pedalboard power supplies
● USB-C to USB-C cable
● Adhesive rubber feet
● Quick Start card and warranty information
