Experience the gold-standard in audio recording.
UA's next generation of Apollo x16 interfaces is here, for professional studios and music producers who need 16 channels of highest-resolution audio conversion and HEXA Core DSP processing for connecting to a console and mixing large sessions with world-class UAD plug-ins from Auto-Tune, Neve, Manley, Avalon, SSL, and hundreds more.

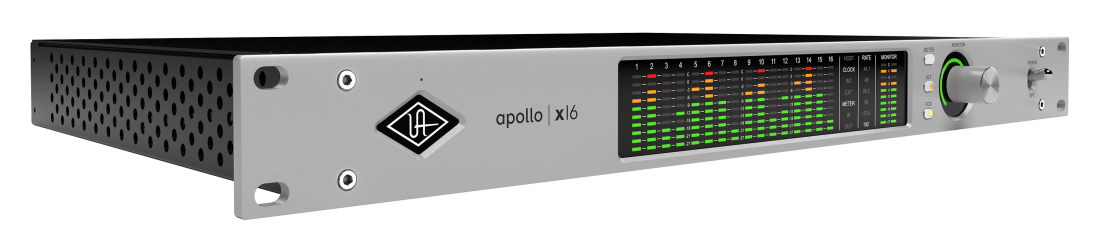

Used in the world's most renowned recording studios, Apollo x16 puts award-winning UA sound and legendary craftsmanship right in your rack.
Elite-Class Apollo X Sound for Your Console & Outboard
Universal Audio built Apollo x16 Gen 2 for pro engineers and producers who need highest-quality sound for the professional analog studio. With the widest dynamic range and lowest distortion available, Apollo x16 effortlessly interfaces with your analog equipment and patchbays with DB-25 connections, offering +24 dBu headroom, 16 x 18 A/D and D/A conversion, and stereo AES I/O.
Hundreds of Analog Sounds, One Rack Space
Apollo x16 comes in two editions, both delivering a generous suite of UAD plug-ins right out of the box. Build your mix with classic Teletronix LA-2A and 1176 compressors, Pultec EQs, API and SSL channel strips to modern favorites from Auto-Tune, Avalon, and more.
Hear the Details Like Never Before
Apollo x16 features UA's highest-resolution A/D and D/A converters paired with multi-channel immersive Apollo Monitor Correction powered by Sonarworks. So you'll not only hear the most pristine representation of your recordings, there will be no surprises when you listen to your final mix or master on any stereo or surround system.
Mix Down to Surround
Apollo x16 supports mixing formats up to 9.1.6. This allows you to easily create 16‑channel immersive audio mixes for Dolby Atmos, Auro‑3D, Sony 360 Reality Audio, and others.
Find Your Flow in the UAD Console App
Apollo x16's powerful digital mixing engine lets you control plug-in routing and monitoring. And with the latest features like Bass Management, Immersive Audio up to Atmos 9.1.6 and Plug-In Scenes, it's easy to find a flow that fits your needs.
A Hybrid System, Made for Your Mission
Combine Apollo x16's HEXA Core DSP with native processing from your host computer to produce large sessions with complex plug-in chains - a powerhouse hybrid workflow that outpaces any native-only recording setup.
Expand Your Studio as You Grow
Link up to four Apollo x16's for 64 channels of elite-class A/D and D/A conversion, perfect for interfacing with large format recording consoles, or stack one x16 with other Thunderbolt Apollo rackmount units and control it all from your desktop using Apollo Twin or x4. So no matter how far your music takes you, an Apollo will always be in reach.
Features
- Studio, Live & Postproduction Engineers
- 30+ UAD Plug-Ins, HEXA Core Processing
- External Power Supply, Mac/Windows
- 16 Line I/O via DB25, 2 XLR Monitor Outs
- Gen 2 Elite-Class 24-Bit / 192 kHz AD/DA
- Stereo AES I/O, Wordclock I/O
- Monitor Correction, Bass Management
- Monitoring Controls and Talkback Mic
- 16-Channel Immersive Audio, up to 9.1.6
Specifications
| Channels of I/O |
18 Inputs / 20 Outputs
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
Yes
|
Signal Processing
| Pad |
No
|
| High-Pass Filter |
No
|
| Solo/Mute |
Mute per Master
|
Connectivity
| Analog Audio I/O |
2x DB-25 Balanced Line Input
2x XLR 3-Pin Balanced Monitor Output
2x DB-25 Balanced Line Output
|
| Phantom Power |
No
|
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
|
| Host Connection |
1x USB-C
|
| Host Connection Protocol |
Thunderbolt 3
|
| USB (Non-Host) |
1x USB-C (Device Connection)
|
| Sync I/O |
1x BNC Word Clock Input
1x 1/8" / 3.5 mm TS Word Clock Output
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
Line Inputs:
20 Hz to 20 kHz ±0.04 dB
Line Outputs:
20 Hz to 20 kHz ±0.02 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB
|
| Maximum Input Level |
Line Inputs:
24 dBu (Reference Level at +4 dBu)
|
| Maximum Output Level |
Line Outputs:
24 dBu (Reference Level at +4 dBu)
12.2 dBu (Reference Level at -10 dBv)
Monitor Outputs:
24 dBu (Reference Level at +4 dBu)
10 dBV (Reference Level at -10 dBv)
|
| Impedance |
Line Inputs:
10 Kilohms
Line Outputs:
100 Ohms
Word Clock Inputs:
75 Ohms
|
| Dynamic Range |
Line Inputs:
124 dBA
Line Outputs:
127 dBA
Monitor Outputs:
133 dBA
|
| THD+N |
Line Inputs:
-115 dB / 0.00018%
Line Outputs:
-123 dB / 0.000068%
Monitor Outputs:
-129 dB / 0.000037%
|
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Latency |
1.1 ms at 96 kHz
|
| Sync Sources |
AES3, Internal, Word Clock
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
Windows / macOS
|
| Mobile Device Compatibility |
No
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| AC/DC Power Adapter |
12 VDC at 6 A
|
| Power Consumption |
72 W
30 W (Typical)
|
Physical
| Rackmount Size |
1 U (with Included Hardware)
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
19 x 12 x 1.74" / 48.3 x 30.5 x 4.42 cm (Chassis Only)
19 x 13.5 x 1.74" / 48.3 x 34.3 x 4.42 cm (Including Controls and Protrusions)
|
| Weight |
8.5 lb / 3.9 kg
|
Packaging Info
| Package Weight |
16.59 lb
|
| Box Dimensions (LxWxH) |
23.6 x 17.3 x 8.7"
|
