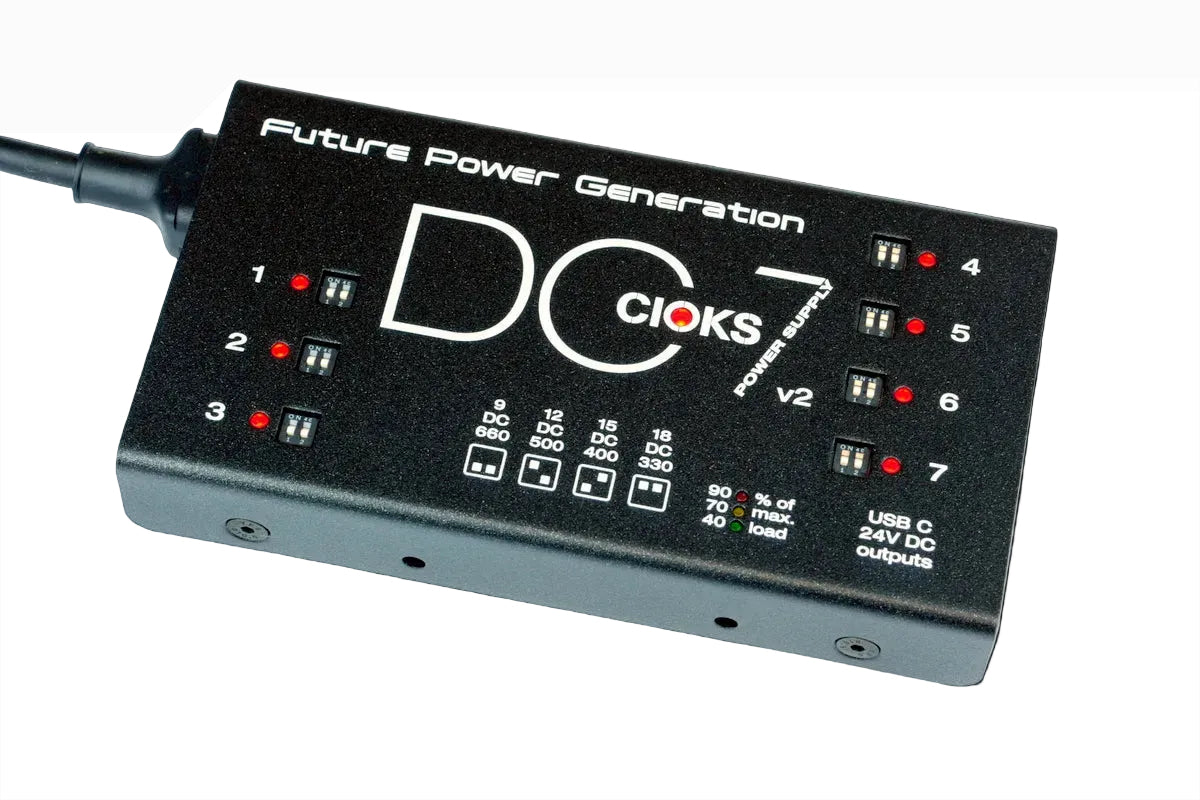

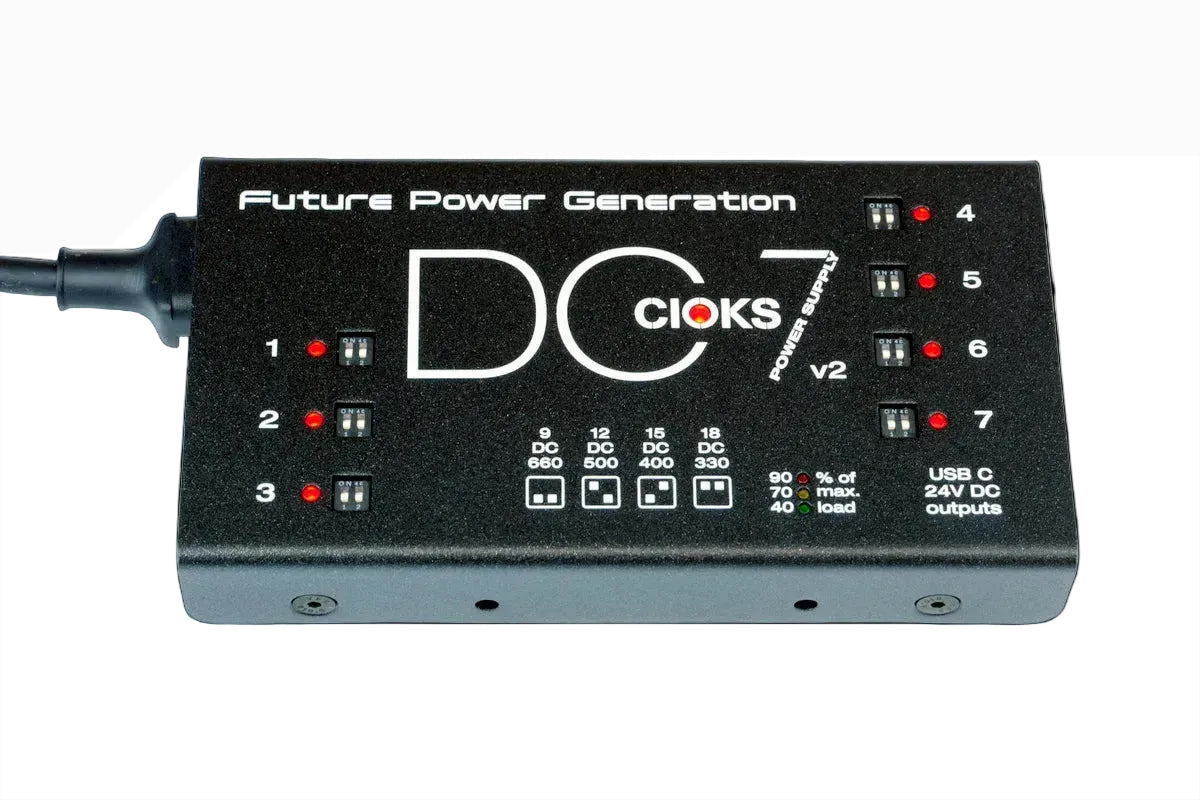

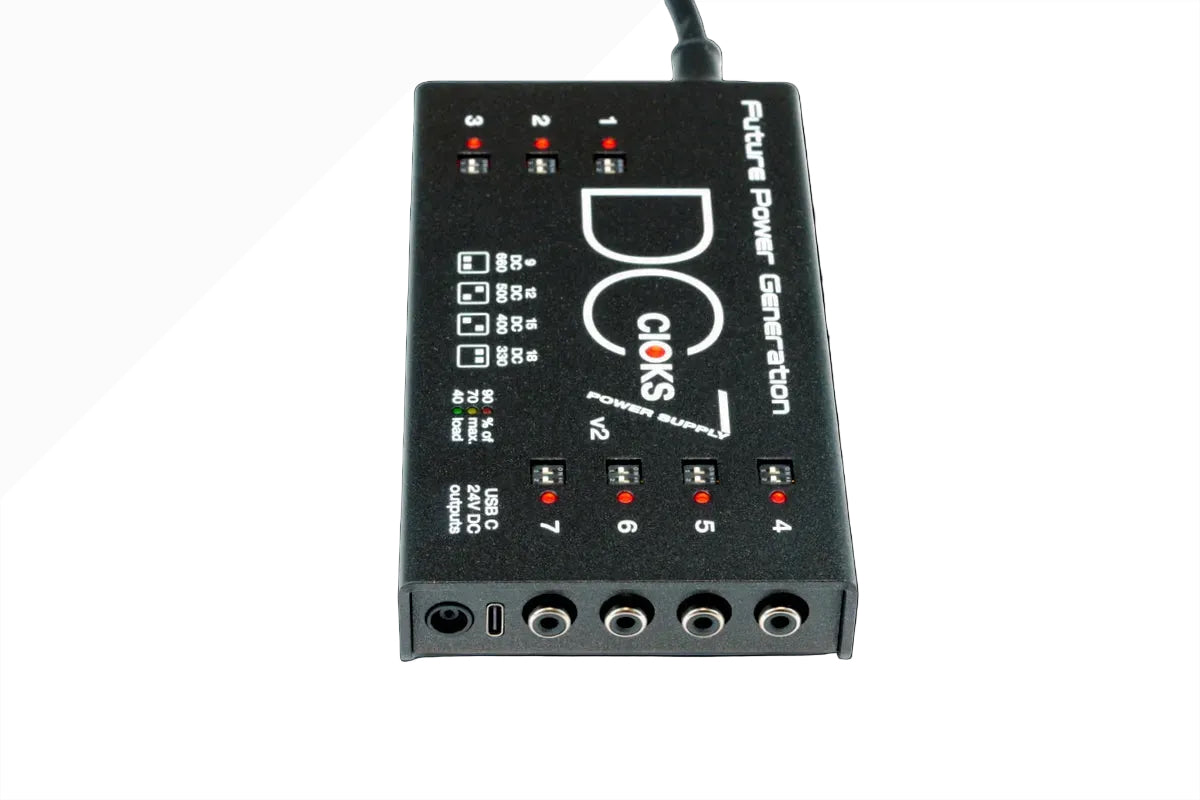

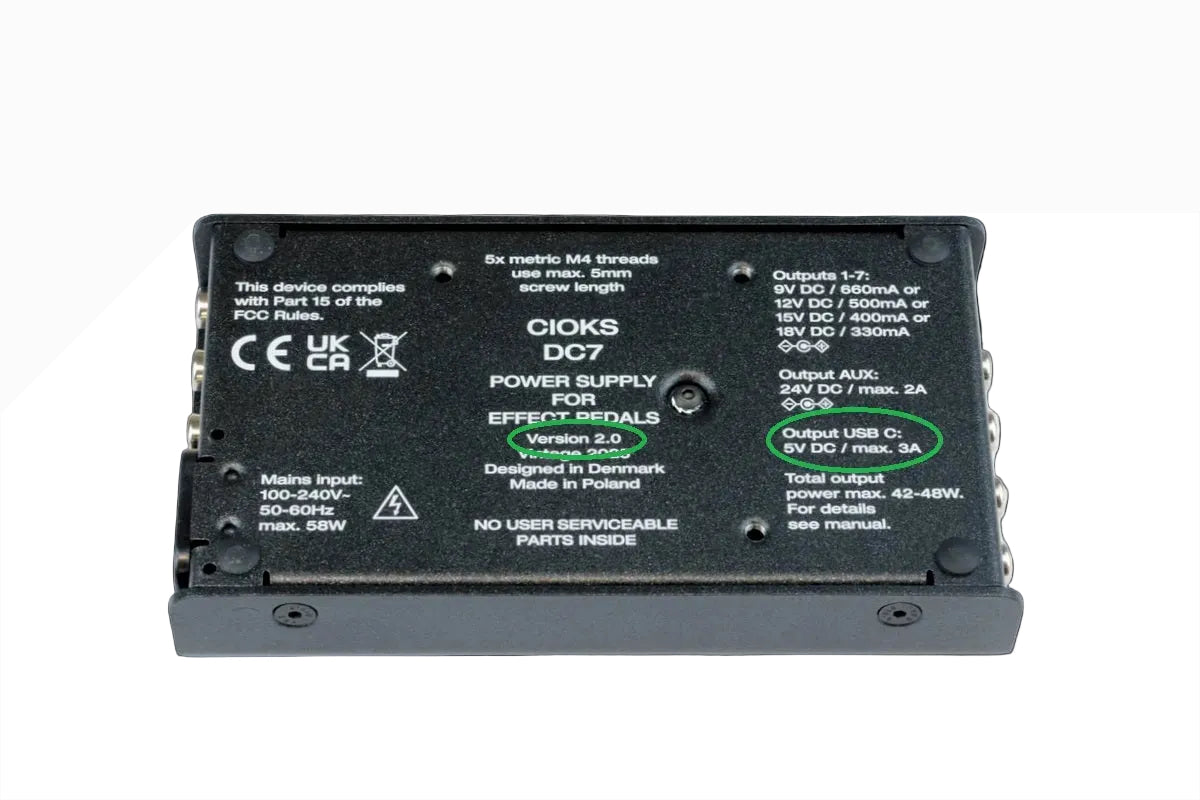

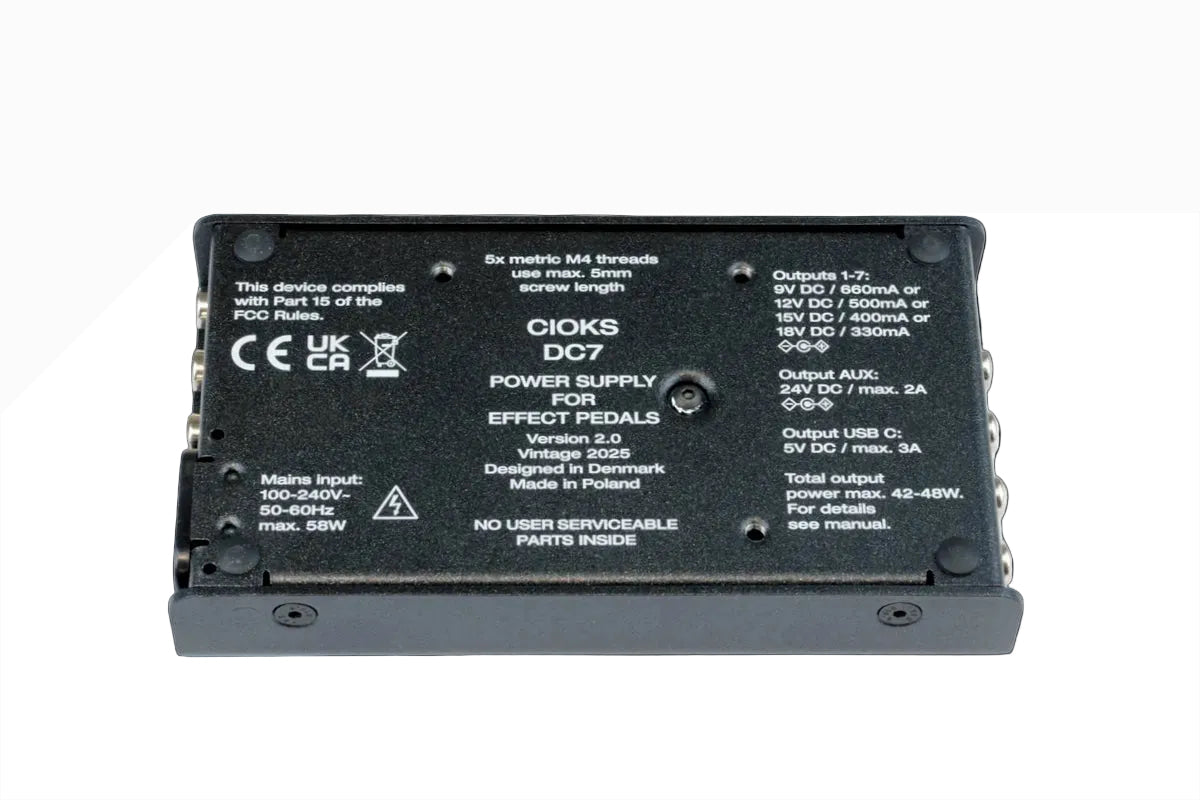

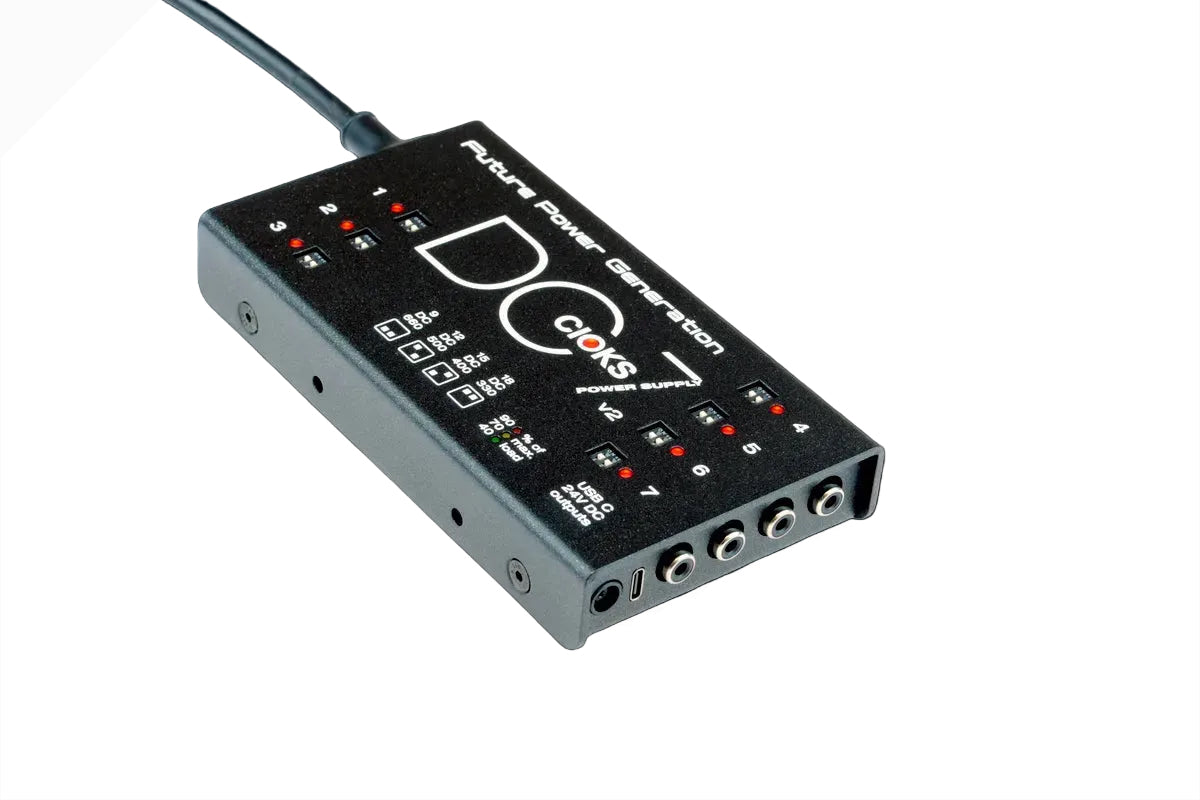

Cioks DC 7 Future Power Generation Pedal Board Power Supply V2
DC7 v2 is the latest version of the award-winning DC7 which quickly became the industry standard for powering effects pedals after its 2018 release. It remains the thinnest, most flexible power supply on the market and it has now been updated with a USB-C outlet delivering three times the power the original USB-A outlet did (15W instead of 5W). DC7 v2 has been also optimized to run more efficiently and therefore cooler than the original DC7 did while still providing enough power to kickstart a small sun.
DC7 v2 can be expanded with CIOKS 4, CIOKS 8, and CRUXÂ (plus other compatible 24V-powered units) for even more isolated outputs and flexibility. Paired with the updated Cioks Flex cables, it remains the most versatile, reliable and noise-free pedalboard power solution available.
Features:
- Groundbreaking 1" profile
- 2-stage switch-mode power supply topology
- Ultra-low noise achieved by multistage filtering
- 7 isolated DC-outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable voltages on each outlet
- 15V USB-C outlet with max. 3A
- 24V DC auxiliary outlet with max. 2A
- Individual power limit LED on all outputs
- Built-in true power meter showing the total load
- Global overload status LED
- Universal mains input voltage 90 to 265V AC
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with Cioks GRIP for drill-free mounting on Pedaltrain boards
- 12 Flex cables included
- Expandable with Cioks 4, Cioks 8 and Crux
- Weighs 1.1 lbs
- Designed in Denmark, assembled in Poland
- 5-year worldwide warranty
